¶ Introduction
This section of the API documentation provides detailed instructions on how to register and display structure residue annotations. These are not to be confused with structure annotations, described here
When a structure chain is mapped to a UniProt sequence, its residues inherit UniProt sequence annotations (e.g., Pfam and PROSITE domains and sites). However, some chains may not have a corresponding UniProt entry—such as internal antibody or nanobody chains. In other cases, internal data (e.g. predicted properties) may be available to enrich the structure.
In both scenarios, users can register custom annotations directly at the structure residue level. These are referred to as structure residue annotations, and they can be added to any user-registered structure.
Common examples of structure residue annotations include:
- CDR regions
- Chemical liability motifs
- Alternative residue numbering schemes
Whether experimental or predicted, these annotations are essential for internal analysis and decision-making.
Unlike biomolecular sequence annotations, structure residue annotations are specific to the structure and are not linked back to the underlying biomolecular sequence. They follow the same privacy settings as the structure itself, meaning only users with access to the structure can view its associated annotations.
Only users that is the owner of a structure, or has the privilege to "manage structure annotations" can add annotations to a structure.
Like UniProt sequence annotations, structure residue annotations are displayed in the Annotation Browser, where they can be highlighted in 3D in a simple click.
¶ Adding Structure Residue Annotations
To register structure residue annotations, follow these steps:
- Verify that you have the privilege to
manage structure annotationson the structure. If this is not the case, ask the owner of the structure, or and admin to grant you this privilege via theMy Structurespanel or the API endpointPOST /structures/{id}/user/email/privileges/{privilegename} - Register the
annotation type labelsyou want to use for the structure residue annotations. These labels are displayed on the left hand side of the Annotation Browser and regroup annotations of the same type in a single line. The annotation type labels are registered via the endpointPOST /annotation-types. More details can be found here. - Register the
structure residue annotationsvia the API endpointPOST /annotations/structure-residues. The payload includes the following parameters:
label: the value of the annotation. It can be a numeric value or a string, e.g. "CDR-H1"typeLabel: the annotation type label (registered in the previous step), e.g. "Antibody"source: the source of the annotation, e.g. "MOE 2024",link: URL to source or reference, e.g. "https://doi.org/10.1128/JVI.00660-20"authResNum: residue number, e.g. 105authChain: chain code of the residue, e.g. "A"insertionCode: isnertion code of the residue, e.g. ""externalCode: 6-digit code that identifies a structure registered by a User, e.g."123abc",
¶ Sequence Mapping and Annotation Independence
Sequence Mapping is one of several post-registration analyses triggered automatically after structure registration. If a structure chain is poorly mapped, any user can relaunch the sequence analysis via the API by providing the correct UniProt code(s). More details on this process can be found here.
Importantly, relaunching the Sequence Mapping analysis does not affect structure residue annotations.
¶ Example 1: Annotate a range of resiudes with CDR labels

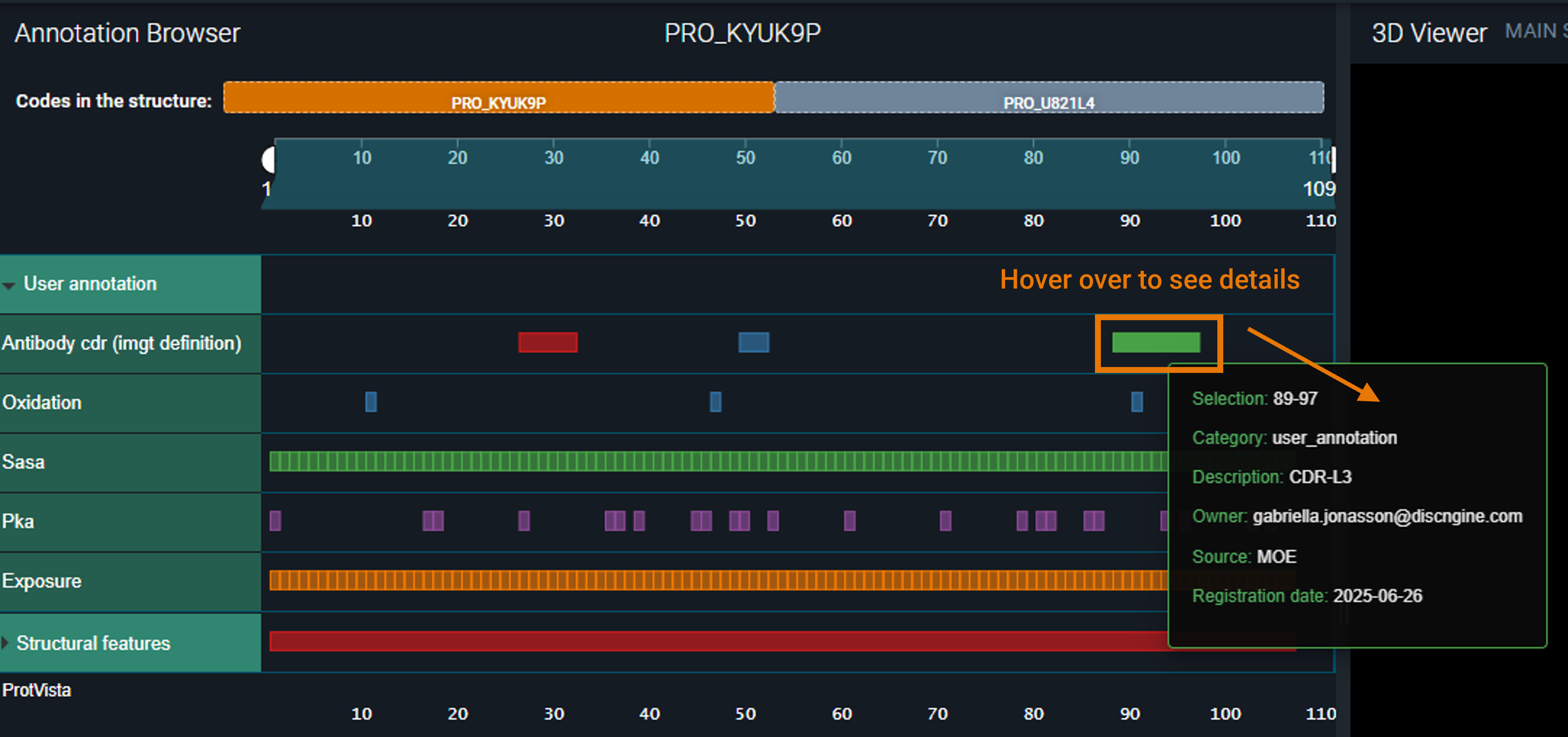

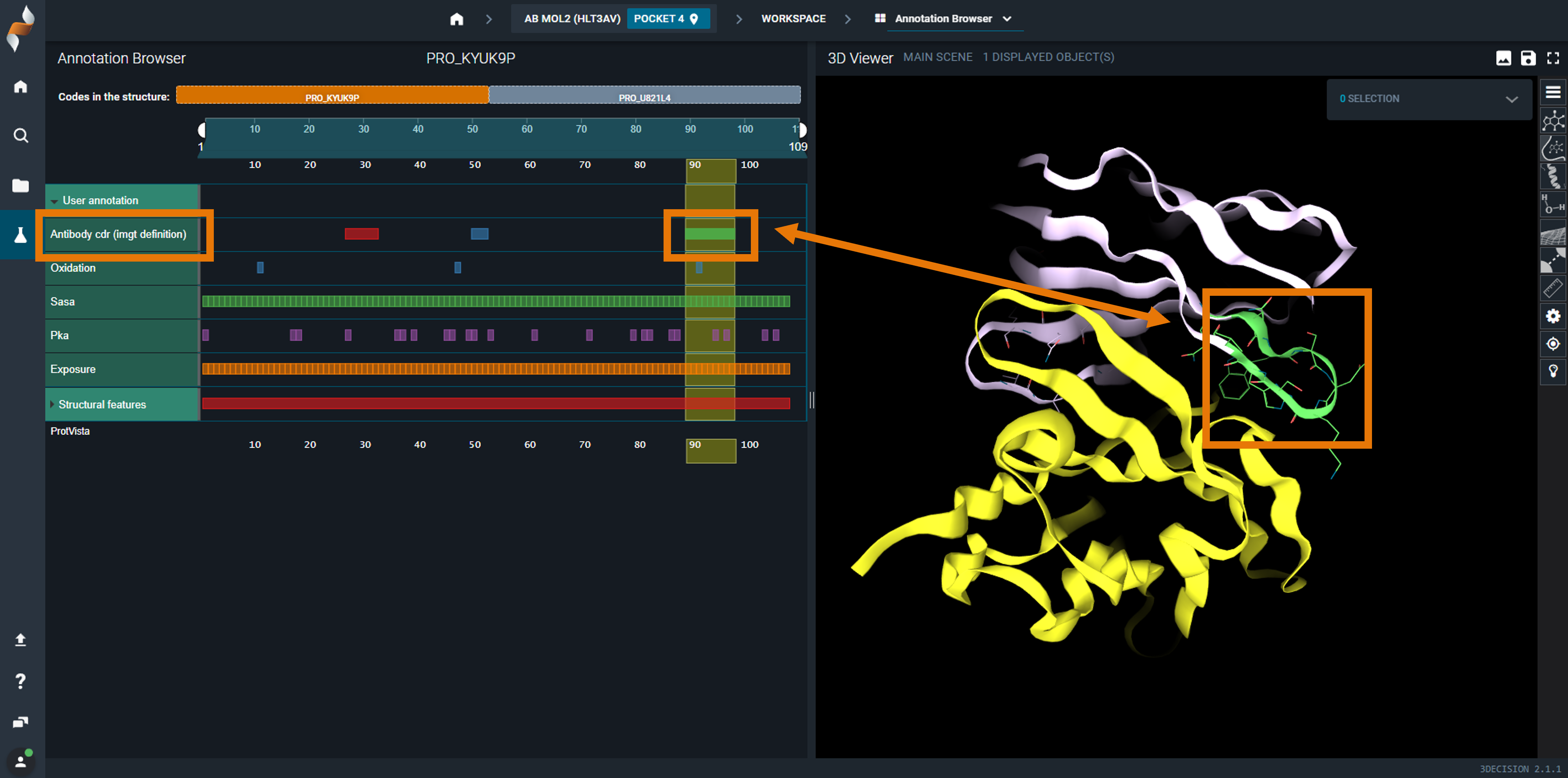

In this example, we will add CDR annotations to a range of residue in an antibody structure.
- Register the annotation type label via the API endpoint
POST /annotation-types:
{
"annot_type_label": "Antibody CDR (IMGT definition)"
}
- Register the structure residue annotation via the API endpoint
POST /annotations/structure-residueswith the following payload:
payload
{
"annotations": [
{
"annotation": {
"label": "CDR-H1",
"typeLabel": "Antibody CDR (IMGT definition)",
"source": "MOE",
"link": "",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 26,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 27,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 28,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 29,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 30,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 31,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 32,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 33,
"authChain": "H",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "CDR-H2",
"typeLabel": "Antibody CDR (IMGT definition)",
"source": "MOE",
"link": "",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 51,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 52,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 53,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 54,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 55,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 56,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 57,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 58,
"authChain": "H",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "CDR-H3",
"typeLabel": "Antibody CDR (IMGT definition)",
"source": "MOE",
"link": "",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 97,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 98,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 99,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 100,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 101,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 102,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 103,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 104,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 105,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 106,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 107,
"authChain": "H",
"insertionCode": ""
},
{
"authResNum": 108,
"authChain": "H",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "CDR-L1",
"typeLabel": "Antibody CDR (IMGT definition)",
"source": "MOE",
"link": "",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 27,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 28,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 29,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 30,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 31,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 32,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "CDR-L2",
"typeLabel": "Antibody CDR (IMGT definition)",
"source": "MOE",
"link": "",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 50,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 51,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 52,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "CDR-L3",
"typeLabel": "Antibody CDR (IMGT definition)",
"source": "MOE",
"link": "",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 89,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 90,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 91,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 92,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 93,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 94,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 95,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 96,
"authChain": "L",
"insertionCode": ""
},
{
"authResNum": 97,
"authChain": "L",
"insertionCode": ""
}
]
}
],
"externalCode": "hlt3av",
"commit": true
}
¶ Example 2: Annotate residues with predicted properties

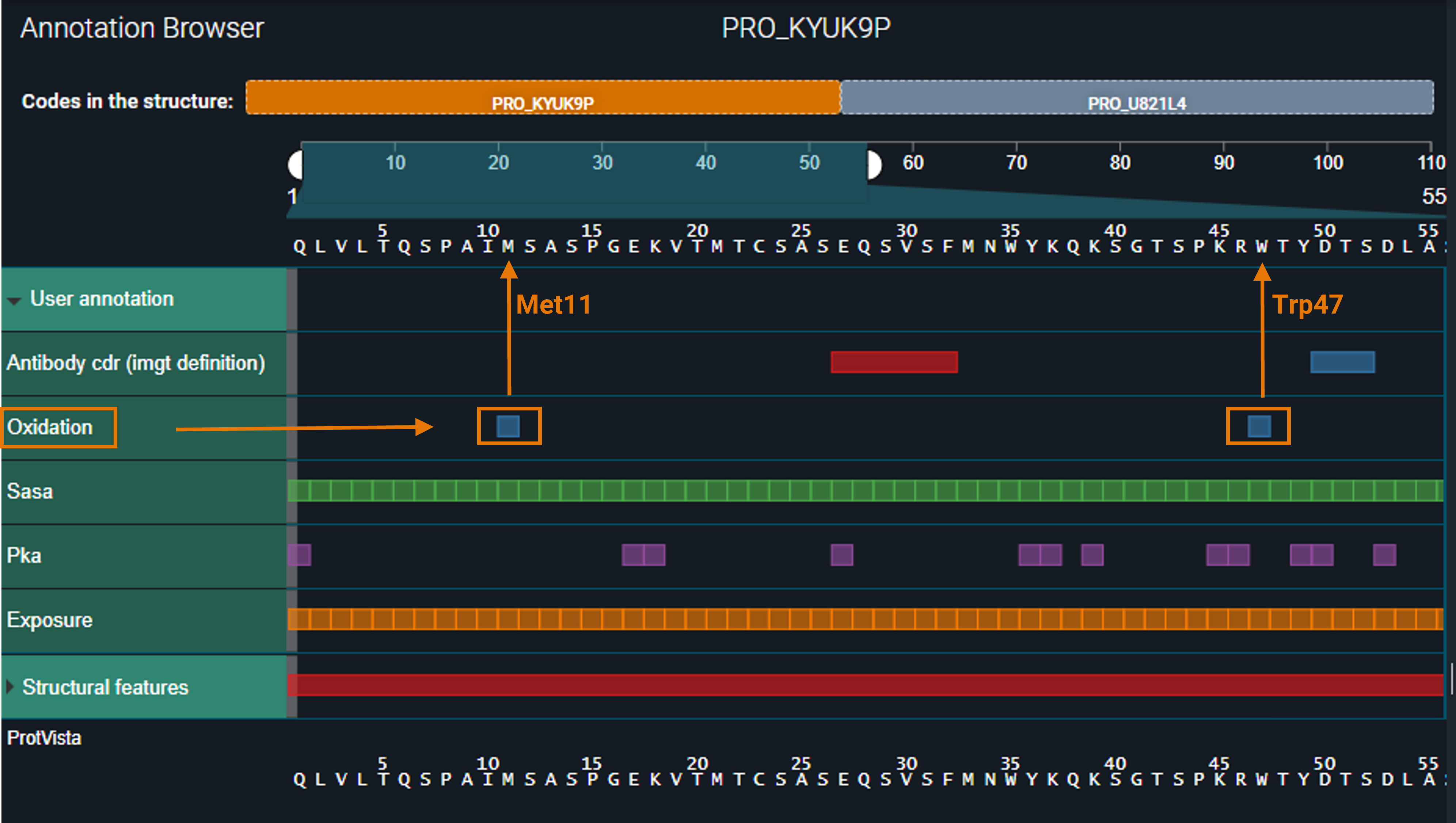

In this example, we will add annotations with numeric values to individual residue in an antibody structure.
- Register all annotation type labels that do not yet exist in the database. Use individual call via API endpoint
POST /annotation-types:
{
"annot_type_label": "SASA"
}
{
"annot_type_label": "pKa"
}
{
"annot_type_label": "Exposure"
}
- Register the structure residue annotation via the API endpoint
POST /annotations/structure-residueswith the following payload:
payload
{
"annotations": [
{
"annotation": {
"label": "187.8",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 1,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "7.72",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 1,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "94.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 1,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "14.1",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 2,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "6.2",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 2,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "99.5",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 3,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "50.9",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 3,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 4,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 4,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "84.9",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 5,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "48.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 5,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "2.5",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 6,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "1.2",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 6,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "61.6",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 7,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "42.2",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 7,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "53.2",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 8,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "31.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 8,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "78.2",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 9,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "56.9",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 9,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "121.8",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 10,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "54.8",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 10,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "46.9",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 11,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "19.2",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 11,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "46.1",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 12,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "31.6",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 12,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "2.6",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 13,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "1.9",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 13,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "42.2",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 14,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "28.9",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 14,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "87.6",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 15,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "51.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 15,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "49.7",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 16,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "49.5",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 16,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "85.7",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 17,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "3.63",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 17,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "41.3",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 17,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "135.1",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 18,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "10.22",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 18,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "57.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 18,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "5.5",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 19,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "2.8",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 19,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "52.4",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 20,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "30.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 20,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 21,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 21,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "56.4",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 22,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "32.3",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 22,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 23,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 23,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "59.9",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 24,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "41.1",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 24,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "14.3",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 25,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "10.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 25,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "84.1",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 26,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "57.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 26,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "70.2",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 27,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "4.05",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 27,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "33.8",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 27,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "136.4",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 28,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "68.3",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 28,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.4",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 29,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.3",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 29,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "85.5",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 30,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "43.8",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 30,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "51.5",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 31,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "35.3",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 31,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "122.2",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 32,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "46.6",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 32,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 33,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 33,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "2.4",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 34,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "1.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 34,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 35,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 35,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 36,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "11.45",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 36,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 36,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "6.9",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 37,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "11.28",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 37,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "2.9",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 37,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "15.4",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 38,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "7.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 38,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "69.9",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 39,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "9.94",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 39,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "29.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 39,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "127.6",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 40,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "87.5",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 40,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "101.2",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 41,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "100.9",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 41,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "58.2",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 42,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "33.3",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 42,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "9.4",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 43,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "6.5",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 43,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 44,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 44,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "112.9",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 45,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "10.5",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 45,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "47.9",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 45,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "13.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 46,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "13.7",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 46,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "4.8",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 46,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "38.6",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 47,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "12.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 47,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 48,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 48,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "30.9",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 49,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "14.09",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 49,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "11.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 49,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "69.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 50,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "4.15",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 50,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "39.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 50,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "15.4",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 51,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "8.8",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 51,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "53.5",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 52,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "36.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 52,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "75.7",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 53,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "2.56",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 53,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "42.9",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 53,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "49.8",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 54,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "21.9",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 54,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "8.8",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 55,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "6.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 55,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "111.6",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 56,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "76.5",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 56,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "84.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 57,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "83.8",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 57,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "17.7",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 58,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "9.1",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 58,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "47.7",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 59,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "27.8",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 59,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "111.7",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 60,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "81.3",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 60,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "94.8",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 61,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "11.94",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 61,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "35.1",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 61,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "16.2",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 62,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "6.2",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 62,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "15.6",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 63,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "15.6",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 63,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "11.6",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 64,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "11.6",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 64,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "85.6",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 65,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "58.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 65,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "44.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 66,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "43.9",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 66,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "79.7",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 67,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "54.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 67,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "10.9",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 68,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "10.9",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 68,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "42.2",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 69,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "24.2",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 69,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "76.5",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 70,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "52.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 70,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "3.7",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 71,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "9.6",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 71,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "1.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 71,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "10.2",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 72,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "7.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 72,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 73,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 73,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "32.5",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 74,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "18.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 74,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 75,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 75,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "51.7",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 76,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "35.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 76,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "55.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 77,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "37.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 77,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 78,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 78,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "73.3",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 79,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "3.48",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 79,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "35.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 79,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "66.9",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 80,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "48.8",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 80,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "121.9",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 81,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "3.77",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 81,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "58.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 81,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "1.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 82,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "1.06",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 82,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.6",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 82,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "27.7",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 83,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "20.2",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 83,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "4.6",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 84,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "3.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 84,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "34.9",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 85,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "20.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 85,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 86,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "14.6",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 86,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 86,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "1.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 87,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "10.75",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 87,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 87,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 88,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 88,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 89,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 89,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 90,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 90,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "37.7",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 91,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "12.1",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 91,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "13.8",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 92,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "9.5",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 92,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "146.4",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 93,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "84.8",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 93,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "83.1",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 94,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "9.73",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 94,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "35.3",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 94,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "31.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 95,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "21.3",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 95,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "16.3",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 96,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "2.92",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 96,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "7.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 96,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "40.2",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 97,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "20.6",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 97,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "7.1",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 98,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "2.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 98,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "3.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 99,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "3.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 99,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "82.8",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 100,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "56.8",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 100,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "7.7",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 101,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "7.7",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 101,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "1.8",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 102,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "1.1",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 102,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "69.4",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 103,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "10.01",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 103,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "29.5",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 103,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 104,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "0.0",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 104,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "74.5",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 105,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "3.77",
"typeLabel": "pKa",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 105,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "35.9",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 105,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "43.1",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 106,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "19.4",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 106,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "78.1",
"typeLabel": "SASA",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 107,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "45.3",
"typeLabel": "Exposure",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 107,
"authChain": "L",
"insertionCode": ""
}
]
}
],
"externalCode": "qsu7de",
"commit": true
}
¶ Example 3: Annotate individual resiudes with text labels
In this example, we will add oxidation site annotations to individual residue in an antibody structure.
- Register the annotation type label via the API endpoin
POST /annotation-types:
{
"annot_type_label": "Oxidation"
}
- Register the structure residue annotation via the API endpoint
POST /annotations/structure-residueswith the following payload:
payload
{
"annotations": [
{
"annotation": {
"label": "Oxidation",
"typeLabel": "Oxidation",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 11,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "Oxidation",
"typeLabel": "Oxidation",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 47,
"authChain": "L",
"insertionCode": ""
}
]
},
{
"annotation": {
"label": "Oxidation",
"typeLabel": "Oxidation",
"source": "3dpredict",
"link": "https://doi.org/10.1128/JVI.00660-20",
"groups": null,
"data": null
},
"location": [
{
"authResNum": 91,
"authChain": "L",
"insertionCode": ""
}
]
}
],
"externalCode": "i45k8u",
"commit": true
}
